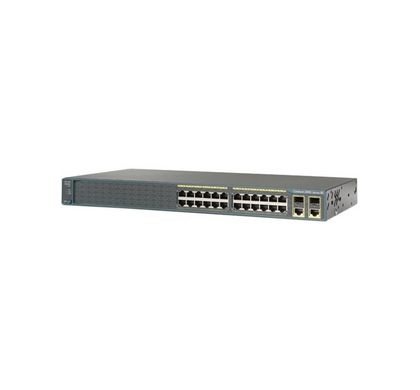

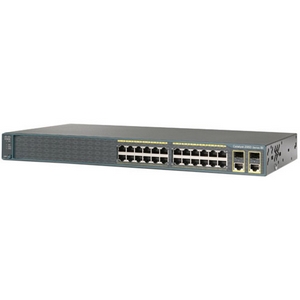

CISCO Catalyst 2960-24TC-S 24 Ports Manageable Ethernet Switch
Description
Cisco Catalyst 2960-24TC-S Switch with LAN Lite software fixed configuration, standalone switch provide desktop Fast Ethernet connectivity for entry level wiring closet and small branch office networks. The Cisco Catalyst 22960-24TC-S LAN Lite Switch simplify the migration from non-intelligent hubs and unmanaged switches to a fully scalable managed network. The LAN Lite Cisco IOS Software provides entry level security, quality of service (QoS), and availability capabilities while lowering the network total cost of ownership.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
2960
Product Model:
2960-24TC-S
Product Name:
Catalyst 2960-24TC-S Managed Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
- 2 x Gigabit Ethernet Expansion Slot
- 2 x Gigabit Ethernet Uplink
- 24 x Fast Ethernet Network
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10Base-T
- 100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
- SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
- CLI
- Syslog
- DHCP
- SNMPv1, v2c, and v3
- Telnet
- Web browser
- Express Setup
- Cisco Network Assistant
- IEEE 802.1p QoS
- IEEE 802.1Q VLAN
- RMON (history, statistics, alarms, and events)
- CiscoWorks LAN Management Solution
- Cisco Identity-Based Networking Services
Memory
Standard Memory:
- 64 MB
Memory Technology:
DRAM
Flash Memory:
32 MB
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Height:
43.9 mm
Width:
444.5 mm
Depth:
236.2 mm
Weight (Approximate):
3.63 kg
