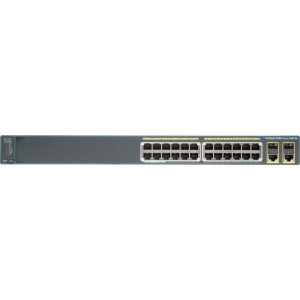

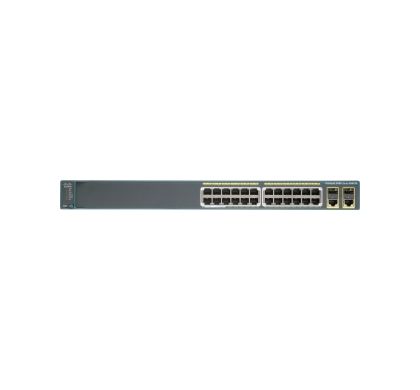

CISCO Catalyst 2960-24PC-L 24 Ports Manageable Ethernet Switch
Description
The Cisco Catalyst 2960-24PC-L Switch with Power over Ethernet (PoE) is a new member of the Cisco Catalyst 2960 Series of fixed-configuration standalone switches for entry-level enterprise, midmarket, and small branch office networks. The Cisco Catalyst 2960-24PC-L can support 24 simultaneous full-powered PoE ports at 15.4W.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
2960
Product Model:
2960-24PC-L
Product Name:
Catalyst 2960-24PC-L Ethernet Switch with PoE
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
24
Port/Expansion Slot Details:
2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10Base-T
- 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
- SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
- CLI
- Telnet
- HTTP
- Syslog
- DHCP
- RMON
- IEEE 802.1p QoS
- IEEE 802.1Q VLAN
- SNMP v1, v2, v2c, v3
- Cisco Works LAN Management Solution
Memory
Standard Memory:
- 64 MB
Memory Technology:
DRAM
Flash Memory:
32 MB
Power Description
PoE Port:
Yes
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Form Factor:
Rack-mountable
Height:
43.9 mm
Width:
444.5 mm
Depth:
330.2 mm
Weight (Approximate):
5.44 kg
