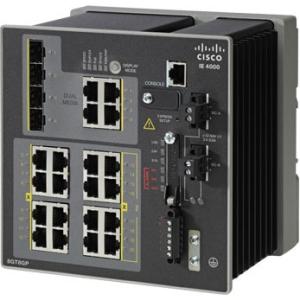

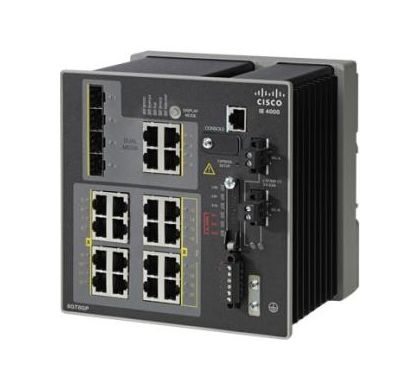

CISCO 20 Ports Manageable Layer 3 Switch
Description
Developed specifically to withstand the harshest industrial manufacturing environments, these switches offer today's most flexible and scalable industrial Ethernet platform that will grow with your network.
The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
4000
Product Name:
4000 Layer 3 Switch
Product Type:
Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports:
20
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of Network (RJ-45) Ports:
20
Port/Expansion Slot Details:
- 16 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
- VLAN
- SSH
- SNMP v3
- DHCP
- Fast Boot
- Express Setup
- Web Device Manager
- Cisco Network Assistant
- Cisco Prime platform
- MIB
- SmartPort
- syslog
- Storm Control
- SPAN Sessions
- RSPAN
- Customized TCAM/SDM
- DOM (digital optical management)
- QoS
Memory
Standard Memory:
- 512 MB
Memory Technology:
DRAM
Flash Memory:
128 MB
Memory Card Supported:
- Secure Digital (SD) Card
Reliability
MTBF:
558630 Hour
Power Description
PoE Port:
No
Power Source:
- Power Supply
Physical Characteristics
Height:
155.4 mm
Width:
155.4 mm
Depth:
129.3 mm
Weight (Approximate):
2.88 kg
