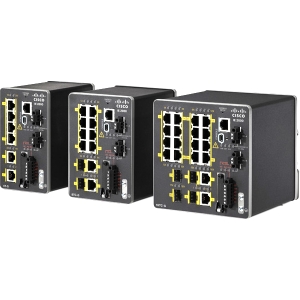

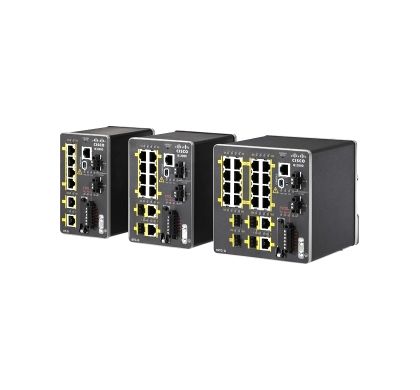

CISCO 18 Ports Manageable Ethernet Switch

IE-2000-16PTC-G-NX
Please Call
Please contact us for pricing

Description

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
IE-2000
Product Name:
IE-2000 Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
18
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
USB:
Yes
Number of PoE+ Ports:
16
Port/Expansion Slot Details:
  • 16 x Fast Ethernet Network
  • 2 x Gigabit Ethernet Uplink
  • 2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:
  • Category 5
Ethernet Technology:
  • Fast Ethernet
Network Technology:
  • 10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • Web-based Management
    • Syslog
    • SNMP v1, v2c, v3
    • VLAN
    • QoS
    • DHCP
    • RMON
    • Telnet

Memory

Standard Memory:
  • 256 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Memory Card Supported:
  • Secure Digital (SD) Card

Reliability

MTBF:
374052 Hour

Power Description

PoE Port:
No
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
Rail-mountable
Height:
129.5 mm
Width:
127 mm
Depth:
133.6 mm
Weight (Approximate):
1.97 kg
