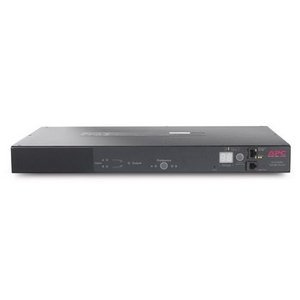

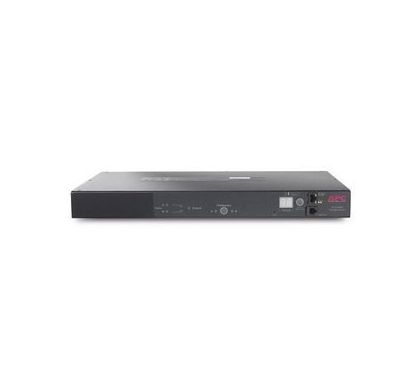

APC AP7721 Automatic Transfer Switch

AP7721

This product has been discontinued by the manufacturer

Please visit

APC Transfer Switches

for alternative options.

Description

This Rack Automatic Transfer Switch provide reliable, redundant power to single-corded equipment. It has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. Networked units have built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
AP7721
Product Name:
Rack Automatic Transfer Switch
Product Type:
Automatic Transfer Switch

Technical Information

Plug/Connector Type:
  • 2 x IEC 320-C14
Receptacles:
  • 12 x IEC 320-C13

Power Description

Input Voltage:
  • 220 V AC
Input Voltage Range:
  • 230 V AC
Current:
  • 10 A Total Current Draw Per Phase
  • 10 A Input Current Per Phase
Frequency:
  • 47 to 63 Hz

Physical Characteristics

Colour:
  • Black
Form Factor:
1U Rack-mountable
Height:
44 mm
Width:
432 mm
Depth:
229 mm
Weight (Approximate):
3.93 kg

Miscellaneous

Package Contents:
  • Rack Automatic Transfer Switch
  • Documentation CD
  • Rack Mounting Brackets
  • RS-232 Configuration Cable
  • Warranty Card
Certifications & Standards:
  • EN 55022 Class A
  • FCC Part 15 Class A

Warranty

Standard Warranty:
2 Year
