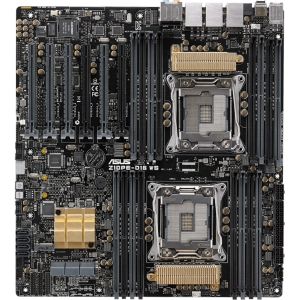

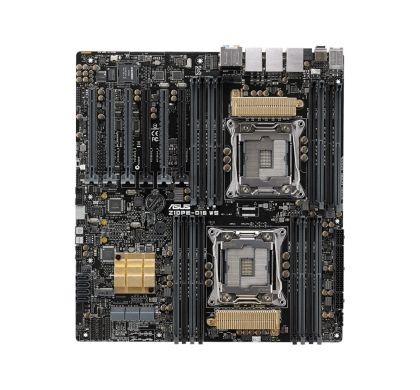

Z10PE-D16 WS

This product has been discontinued by the manufacturer

Please visit

ASUS Motherboards

for alternative options.

Description

Intel® Xeon® E5-2600 processor family for the LGA 2011 socket

The motherboard supports the latest Intel® Xeon® processor E5-2600 v3 product family with dual LGA 2011-3 sockets. Memory and PCI Express controllers are integrated alongside quad-channel 16-DIMM DDR4 memory and 80 PCI Express 3.0 lanes. This provides great graphics performance with superior energy efficiency.

Intel® C612 Express Chipset

The Intel® C612 Chipset is the latest single-chipset design that supports Intel® Xeon® processor E5-2600 v3 product family for dual LGA 2011-3 sockets. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the C612 comes with 10 x SATA 6Gbit/s ports for faster data retrieval, doubling the bandwidth of current bus systems.

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
Z10PE-D16 WS
Product Name:
Z10PE-D16 WS Workstation Motherboard
Product Type:
Workstation Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
C612
Total Processor Supported:
2
Processor Socket:
Socket R3 (LGA2011-3)
Processor Supported:
  • Xeon
64-bit Processing:
Yes
Multi GPU Supported:
  • CrossFireX
  • SLI

Memory

Number of Memory Slots:
16
Memory Form Factor:
  • DIMM
  • RDIMM
  • LRDIMM
Maximum Memory:
1 TB
Memory Standard:
  • DDR4-1866/PC4-14900
  • DDR4-1600/PC4-12800
  • DDR4-2133/PC4-17000
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video

Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
  • ASPEED
Graphics Controller Model:
  • AST2400
Graphics Controller Memory:
32 MB
Graphics Memory Accessibility:
  • Shared

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC1150
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
6
PCI Express Standard:
PCI Express 3.0
Total Number of PCI Express Slots:
6
Number of PCI Express x16 Slots:
6

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
4
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
VGA:
No
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
3
PS/2 Port:
Yes
Number of PS/2 Ports:
1

Onboard Interfaces

Number of SATA Interfaces:
10
Number of M.2 Interfaces:
1
Total Number of Onboard USB Ports:
4
Number of Onboard USB 2.0 Ports:
2
Number of Onboard USB 3.0 Ports:
2
Onboard Serial Header:
Yes
Onboard S/PDIF Header:
Yes

Controls/Indicators

Buttons & Keys:
  • Power
  • Reset
  • CMOS Clear
  • Dr. Power Switch

Power Description

Power Supply Supported:
EATX12V

Physical Characteristics

Form Factor:
SSI EEB
Width:
304.8 mm
Depth:
330.2 mm
