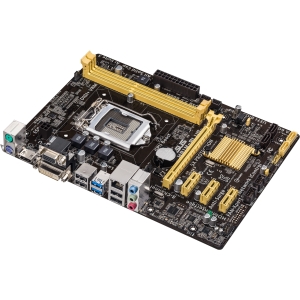

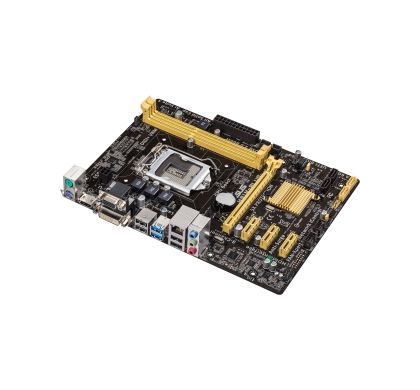

ASUS H81M-PLUS Desktop Motherboard - Intel H81 Chipset - Socket H3 LGA-1150
This product has been discontinued by the manufacturer
Please visit
ASUS Motherboardsfor alternative options.
Description
Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.
This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.
Specifications
General Information
Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
H81M-PLUS
Product Name:
H81M-PLUS Desktop Motherboard
Product Type:
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:
Intel
Chipset Model:
H81
Total Processor Supported:
1
Processor Technology:
- Turbo Boost Technology 2.0
- Quick Sync Video Technology
Processor Socket:
Socket H3 LGA-1150
Processor Supported:
- Core i7
- Core i5
- Core i3
- Pentium
- Celeron
64-bit Processing:
Yes
Memory
Number of Memory Slots:
2
Memory Form Factor:
DIMM
Maximum Memory:
16 GB
Memory Standard:
- DDR3-1600/PC3-12800
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
Memory Technology:
DDR3 SDRAM
I/O Controller
Controller Type:
- Serial ATA/600
- Serial ATA/300
Video
Onboard Video:
CPU Dependent Video
Graphics Controller Manufacturer:
- Intel
Graphics Controller Memory:
1 GB
Graphics Memory Technology:
- DDR3 SDRAM
Graphics Memory Accessibility:
- Shared
Audio
Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC887
Audio Channels:
7.1
Network & Communication
Gigabit Ethernet:
Yes
I/O Expansions
Number of Total Expansion Slots:
4
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
4
Number of PCI Express x1 Slots:
3
Number of PCI Express x16 Slots:
1
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
HDMI:
Yes
Number of HDMI Outputs:
1
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
2
Onboard Interfaces
Number of SATA Interfaces:
4
Total Number of Onboard USB Ports:
6
Number of Onboard USB 2.0 Ports:
4
Number of Onboard USB 3.0 Ports:
2
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Power Description
Power Supply Supported:
ATX12V
Physical Characteristics
Form Factor:
Micro ATX
Width:
244 mm
Depth:
183 mm
Miscellaneous
Package Contents:
- H81M-PLUS Desktop Motherboard
- Support Disc
- User's Manual
- I/O Shield
- 2 X Sata 6Gb/S Cable(S)
Certifications & Standards:
- ACPI 2.0a
- CE
- FCC
- KC (KOREA CERTIFICATION)
- BSMI
- C-TICK
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- WEEE
- RoHS
- ErP Ready
Warranty
Standard Warranty:
3 Year
