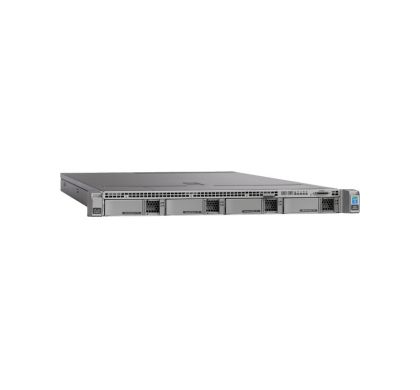

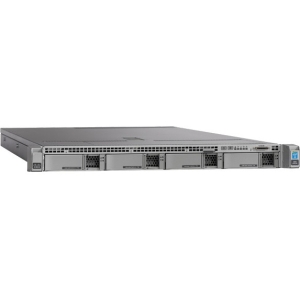

CISCO C220 M4 1U Rack Server - 1 x Intel Xeon E5-2620 v3 Hexa-core (6 Core) 2.40 GHz

CISCO C220 M4 1U Rack Server - 1 x Intel Xeon E5-2620 v3 Hexa-core (6 Core) 2.40 GHz
UCS-SPR-C220M4-E4

This product has been discontinued by the manufacturer

Please visit

CISCO Servers

for alternative options.

Description

The Cisco UCS® C220 M4 Rack Server is the most versatile, general-purpose enterprise infrastructure and application server in the industry. It is a high-density two-socket enterprise-class rack server that delivers industry-leading performance and efficiency for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications. The Cisco UCS C-Series Rack Servers can be deployed as standalone servers or as part of the Cisco Unified Computing System™ (Cisco UCS) to take advantage of Cisco's standards-based unified computing innovations that help reduce customers' total cost of ownership (TCO) and increase their business agility.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
C220 M4
Product Name:
C220 M4 Entry Plus Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2620 v3
Processor Core:
Hexa-core (6 Core)
Processor Speed:
2.40 GHz
Maximum Turbo Speed:
3.20 GHz
Cache:
15 MB
QuickPath Interconnect:
8 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C610

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
  • DDR4-2133/PC4-17000
Number of Total Memory Slots:
24
Memory Card Reader:
Yes
Memory Card Supported:
  • Secure Digital (SD)

Controllers

Controller Type:
  • 12Gb/s SAS
  • Serial ATA
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 5, 10

I/O Expansions

Number of Total Expansion Slots:
2
Number of PCI Express x16 Slots:
2

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
3
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Power Description

Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
770 W

Miscellaneous

Compatibility:
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2008 R2
  • Red Hat Enterprise Linux
  • Novell SUSE Linux Enterprise Server
  • Oracle Linux (Unbreakable Enterprise Kernel (UEK))
  • Oracle Solaris
  • Ubuntu Server
  • CentOS

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
