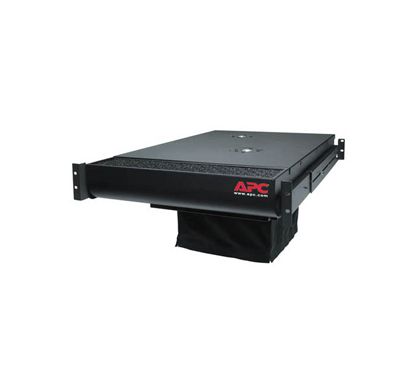

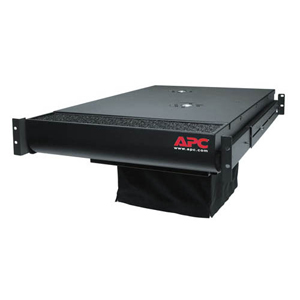

APC ACF002 Airflow Cooling System
Description
The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
ACF002
Product Name:
ACF002 Airflow Cooling System
Product Type:
Airflow Cooling System
Technical Information
Maximum Air Flow:
198.22 L/s
Receptacle Type:
IEC 60320 C14
Power Description
Input Voltage:
- 230 V AC
Input Current:
- 1 A
Power Consumption:
- 230 W
Physical Characteristics
Form Factor:
Rack-mountable
Compatible Rack Height:
2U
Colour:
- Black
Height:
89 mm
Width:
422 mm
Depth:
737 mm
Weight (Approximate):
18.64 kg
Miscellaneous
Package Contents:
- ACF002 Airflow Cooling System
- Rack Mounting brackets
- User Manual
Certifications & Standards:
- CE
- UL
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
Warranty
Standard Warranty:
2 Year
