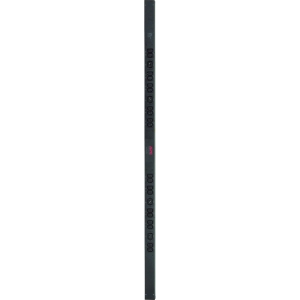

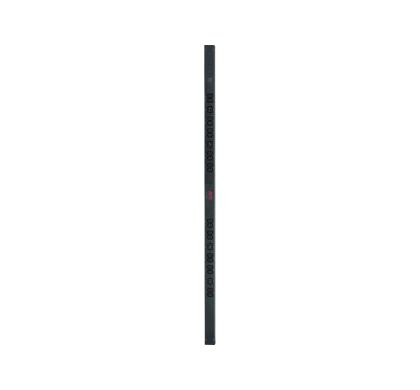

APC Basic Rack AP7554 PDU
Description
The American Power Conversion (APC) Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack. The Rack PDU has twenty IEC -320 - C13 outlets and four IEC-320-C19 outlets. The 10-foot (3.05-meter) power cord terminates with a IEC-309 16A connector.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Basic Rack
Product Model:
AP7554
Product Name:
Basic Rack 3680VA PDU
Product Type:
PDU
Technical Information
Input Receptacles:
IEC 309-16A
Output Receptacles:
- 20 x IEC 320-C13
- 4 x IEC 320-C19
Power Description
Input Voltage:
- 230 V AC
Output Voltage:
- 230 V AC
Power Rating:
3.68 kVA
Physical Characteristics
Colour:
- Black
Height:
1619.3 mm
Width:
55.6 mm
Depth:
43.9 mm
Weight (Approximate):
5.56 kg
Miscellaneous
Package Contents:
- Basic Rack 3680VA PDU
- Installation Guide
- Rack Mounting Brackets
- Toolless Mounting Kit
Additional Information:
- Single Input Power Source
- Toolless Mounting Capabilities
- Vertical Mounting Capabilities
Certifications & Standards:
- CCC
- CE
- VDE
Warranty
Standard Warranty:
2 Year
