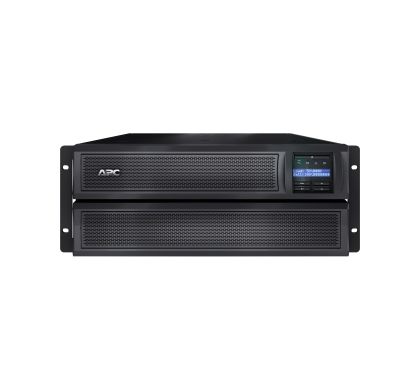

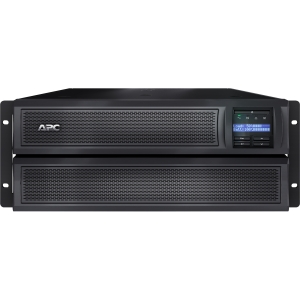

APC Smart-UPS Line-interactive UPS - 2200 VA/1980 W - 4U Tower/Rack Mountable

SMX2200HV
Please Call
Please contact us for pricing

Description

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Smart-UPS
Product Name:
Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Product Type:
Line-interactive UPS

Technical Information

Plug/Connector Type:
  • British BS1363A
  • SCHUKO CEE 7 EU1-16P
  • IEC 60320 C20
Receptacles:
  • 2 x IEC Jumper
  • 2 x IEC 60320 C19
  • 8 x IEC 60320 C13
Emergency Power OFF:
Yes
Cord Length:
1.83 m

Power Description

Load Capacity (VA):
2200 VA
Load Capacity (Watt):
1980 W
Input Voltage:
  • 220 V AC
Output Voltage:
  • 220 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
645 J

Management

Alarm:
  • On Battery
  • Configurable Delay
  • Low Battery

Interfaces/Ports

USB:
Yes
Total Number of Expansion Slots:
1

Battery Information

Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
10 Minute
Backup/Run Time (Half Load):
25 Minute
Maximum Battery Recharge Time:
3 Hour

Environmental Conditions

Temperature:
  • -45°C
Sound Emission:
55 dB(A)
Thermal Dissipation:
150 BTU/h

Physical Characteristics

Colour:
  • Black
Height:
432 mm
Width:
178 mm
Depth:
483 mm
Rack Height:
4U
Form Factor:
Tower/Rack Mountable
Weight (Approximate):
17.53 kg

Miscellaneous

Package Contents:
  • Smart-UPS X 2200VA Rack/Tower LCD 200-240V
  • CD with Software
  • Rack Mounting brackets
  • Smart Signal Cable UPS RS-232
  • USB cable
  • User Manual
Certifications & Standards:
  • C-tick
  • CE
  • CSA
  • EN 50091-1
  • EN 50091-2
  • FCC Part 15 Class A
  • GOST
  • IEC 60950
  • IRAM
  • UL 1778
  • VDE
  • UL 1449
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
