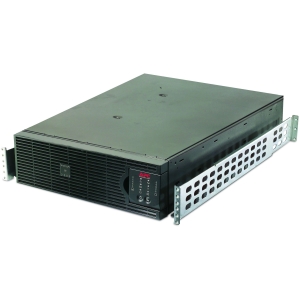

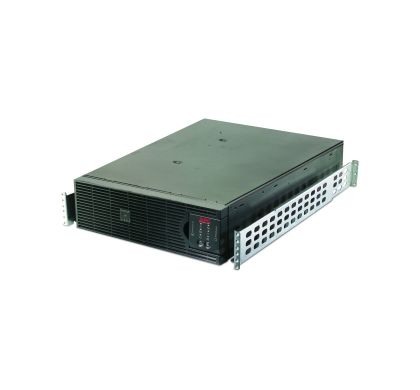

APC Smart-UPS Dual Conversion Online UPS - 2200 VA/1540 W - 3U Rack-mountable
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Smart-UPS
Product Name:
Smart-UPS 2200VA Rack-mountable UPS
Product Type:
Dual Conversion Online UPS
Technical Information
Plug/Connector Type:
- IEC 60320 C20
- SCHUKO CEE 7 EU1-16P
- British BS1363A
Receptacles:
- 2 x IEC 60320 C13
- 8 x IEC Jumper
- 2 x IEC 60320 C19
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Power Description
Load Capacity (VA):
2200 VA
Load Capacity (Watt):
1540 W
Input Voltage:
- 110 V AC
- 220 V AC
Output Voltage:
- 240 V AC
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
21 Minute
Backup/Run Time (Half Load):
48 Minute
Maximum Battery Recharge Time:
2.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
432 mm
Width:
130 mm
Depth:
660 mm
Rack Height:
3U
Form Factor:
Rack-mountable
Weight (Approximate):
54.55 kg
Miscellaneous
Package Contents:
- Smart-UPS 2200VA Rack-mountable UPS
- Smart UPS Signalling RS-232 Cable
- Rack Mounting Hardware
- CD with Software
- Documentation CD
- Installation Guide
- User Manual
Certifications & Standards:
- CE
- DNV
- EN 50091-1
- EN 50091-2
- EN 55022 Class A
- EN 60950
- EN 61000-3-2
- UL60950
- CSA60950
- IEC60950
- EN60950
- IEC 61000-4-5
- GR-1089-CORE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS
Warranty
Standard Warranty:
2 Year
