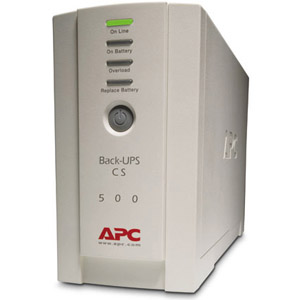

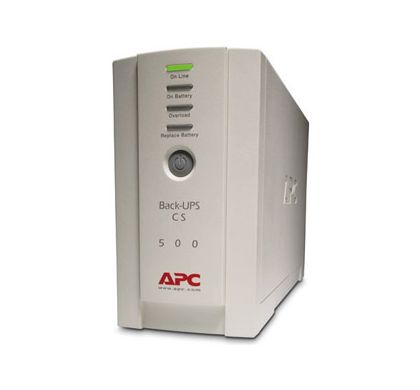

APC Back-UPS BK500EI Standby UPS - 500 VA/300 W

BK500EI
Available
Please contact us for pricing

Description

APC Back-UPS CS 500VA provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Back-UPS
Product Series:
CS
Product Model:
BK500EI
Product Name:
Back-UPS CS 500VA
Product Type:
Standby UPS

Technical Information

Plug/Connector Type:
  • IEC 320-C14
Receptacles:
  • 3
  • 2
  • 3 x IEC 320-C13
  • 2 x IEC 320-C13
  • 1 x IEC 320-C13
Dataline Protection:
RJ-45

Power Description

Load Capacity (VA):
500 VA
Load Capacity (Watt):
300 W
Input Voltage:
  • 220 V AC
Output Voltage:
  • 230 V AC
Surge Energy Rating:
300 J

Management

Alarm:
  • Overload
  • Low Battery
  • On Battery

Controls/Indicators

Status Indicators:
  • On Line
  • On Battery
  • Replace Battery
  • Overload

Interfaces/Ports

USB:
Yes

Battery Information

Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
2.40 Minute
Backup/Run Time (Half Load):
13.90 Minute
Hot Swappable:
Yes

Environmental Conditions

Temperature:
  • 45°C
Thermal Dissipation:
24 BTU/h

Physical Characteristics

Colour:
  • Beige
Height:
165.1 mm
Width:
91.4 mm
Depth:
284.5 mm
Weight (Approximate):
6.30 kg

Miscellaneous

Package Contents:
  • Back-UPS CS 500VA
  • Software CD
  • USB cable
  • User Manual
Additional Information:
    • Replacement battery cartridge Quantity: 1
    • Units per Pallet: 96
    • Automatic restart of loads after UPS shutdown
    • Automatic self-test
    • Power conditioning
Certifications & Standards:
  • C-tick
  • CE
  • EN 50091-1
  • EN 50091-2
  • GOST
  • PCBC
  • VDE
  • UL 1449

Warranty

Standard Warranty:
2 Year
